Connectiques Audio Furutech Fa-aS22 – Au Mètre

FA-αS22
High End Performance Audio Cable

RATING

Max. Conductor Resistance: ω/km 13.2 (JISC3005 6 20°C)
Min. Insulation Resistance Mω?km >100 (JISC3005 9.1 20°C)
CAPACITANCE: PF/M 84.1 at 1KHz
IMPEDANCE: ω 37.7 at 10 MHz
INDUCTANCE: uH/M 1.55 at 1KHz
Dielectric Strength: V/1 min. AC 1000 (JISC3005 8)

FEATURES

Furutech’s α (Alpha) OCC is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) OCC is made with high-purity oxygen-free copper using a special casting process. Unlike regular OFC, almost all of the impurities of this high-purity OCC have been removed at the micron level through a special casting process unique to Furutech.

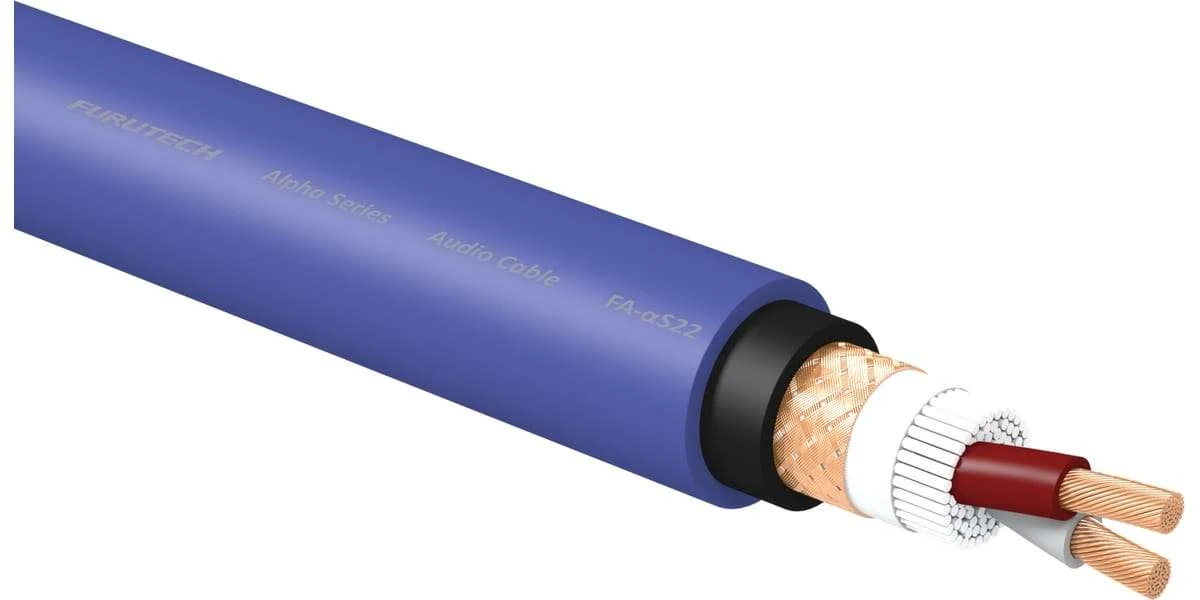

SPECIFICATIONS

Conductor Material: α(Alpha) OCC
Construction (pcs/mm): 60pcs / ψ0.18 mm
Insulation Material: Audio grade PP (Red, White)
Diameter: 2.6mm
Twisting Method : 2 Cores Twisted Together
Filler Material: Audio grade damping cotton
Barrier Layer Material: Stabilizer Paper Tape (Wrap)
Shield Material: ψ0.12mm α (Alpha) Conductor wire braid
Inner Sheath Material: Audio grade flexible PVC (Black) Incorporating damping carbon particles
Diameter: 7.0mm
Sheath Material: Audio grade Flexible PVC (Purple blue)
Nom. Thickness: 1.0mm
Overall Diameter Approx.: 9.0mm
