Vidéoprojecteurs JVC Dla-nz9b

World’s first home projector capable of inputting 8K60p/4K120p signals

These projectors adopt LSIs developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.

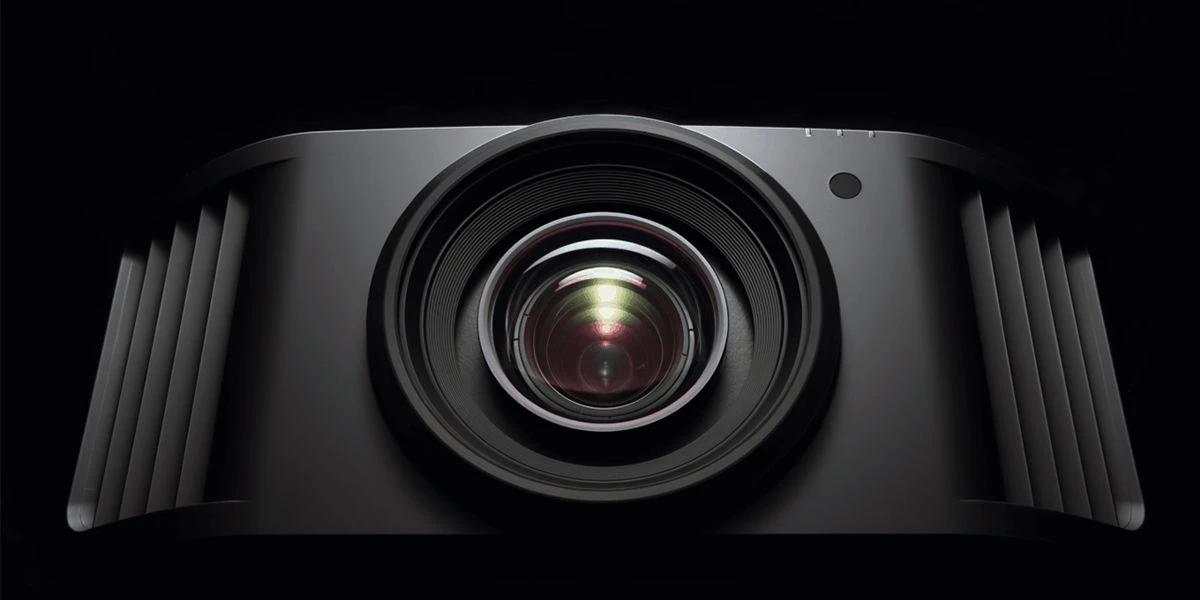

Essential all-glass lens to depict all the data in the 8K image

The high-end DLA-NZ9 is equipped with an 18-element, 16-group all-glass lens featuring a full aluminium lens barrel*1. To project highresolution 8K images to every corner of the screen, the projector incorporates five ED lenses calibrated for differences in the R/G/B refractive index to reduce chromatic aberration and colour fringing when lens shift kicks in to deliver precise reproduction of 4K- or 8K-resolution*2 projection.

HDR10+ Support allows a choice for two dynamic tone mappings

When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.

JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer’s intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.

Ultra-High Contrast Optics with 4K D-ILA device

High-resolution image projection is reliant on the device and the optical system. The refined 0.69-inch 4K D-ILA device has doubled the speed required to display images from 120 Hz to 240 Hz-equivalent. The new Ultra-High Contrast Optics featured on the DLANZ9 and NZ8 contribute to achieve optical brightness as high as 3,000 lumens*, and the new optics has dramatically improved the image quality by thoroughly suppressing the return of unnecessary light to the projection screen.

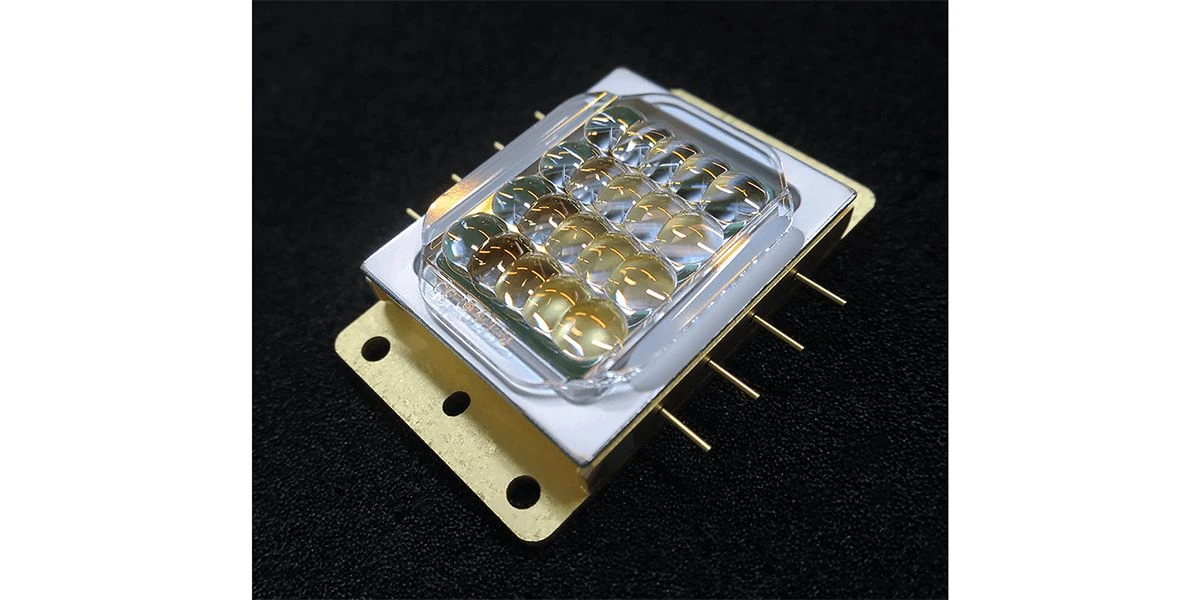

Reliability-proved BLU-Escent Laser Diode for exceptional brightness and longevity

The light source for these projectors is the latest blue laser diode BLU-Escent, which is featured in JVC projectors. BLUEscent technology has been adopted for home theatre projectors to achieve exceptional brightness and longevity of 20,000 hours*. Laser diode allows dynamic control of brightness to reproduce images that are closer to human perception. Combining the latest BLU-Escent package with the D-ILA device achieves detailed, smooth, powerful video expression.

4K120p input ideal for Low Latency mode

Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.

Newly developed 8K/e-shiftX technology to achieve 8K resolution

Significant progress has been made to our proprietary 8K/e-shift technology – which combines “e-shift” high-resolution display technology that doubles the resolution by shifting a pixel by 0.5 pixels, and 0.69-inch native 4K D-ILA device. Shift direction has increased from the conventional two diagonal directions to four directions of up, down, left, and right, to enable display of 8K signal information in its entirety. The result is an 8K resolution, enhancing the sense of three-dimensionality and immersion.

• Newly developed 8K/e-shiftX technology reproduces 8K image quality
• BLU-Escent Laser Light Source
• High brightness of 3,000 lm provides vibrant and dynamic images
• Native Contrast Ratio of 100,000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1

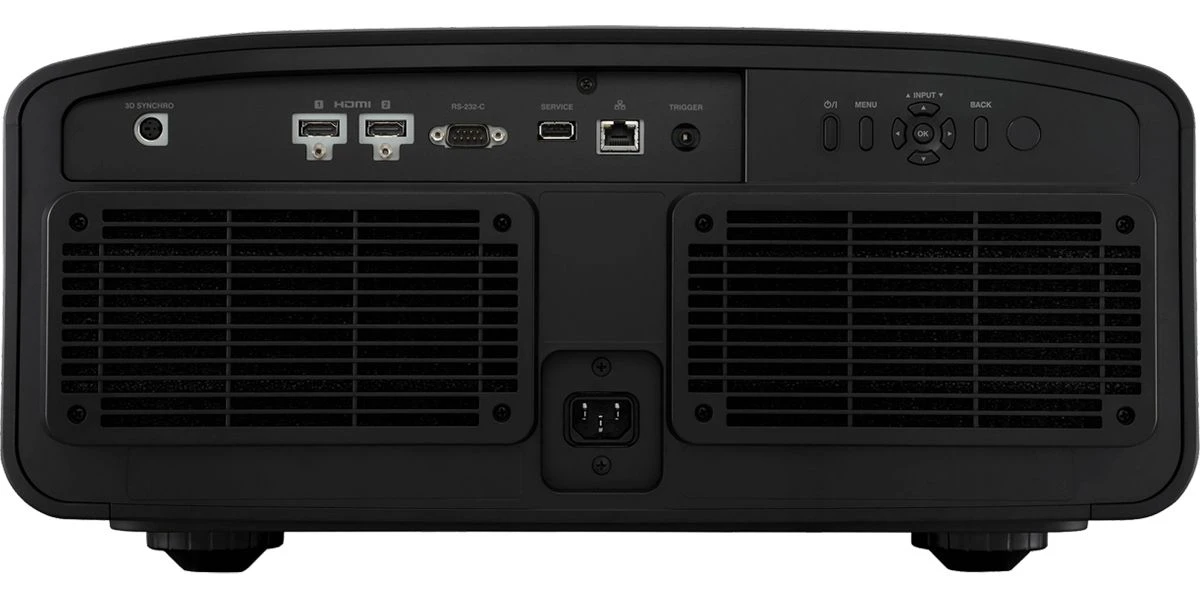

• 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
• HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
• Frame Adapt HDR* dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation
• Le projecteur passe automatiquement en mode d’image HDR lorsque des signaux HDR10 sont reçus.
• Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
• Compatible avec HLG (Hybrid Log-Gamma) qui devrait être largement utilisé dans les futures diffusions
• Nouvelles matrices D-ILA 4K natives 0.69” (4096 x 2160) x3
• Lentille haute resolution intégralement en verre avec 18-éléments et 16 groupes dans un barillet en aluminium
• Nine settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
• Large gamme de couleurs supèrieure au DCI P3 permettant d’avoir des images vives et colorées
• Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
